Industrial Gantry Cranes for Efficient Material Handling
Balaji Crane Private Limited provides industrial crane and material handling solutions for applications requiring the lifting, handling, and movement of heavy materials. Gantry cranes are widely used in manufacturing plants, engineering workshops, warehouses, fabrication units, construction sites, shipyards, and other industrial facilities.
A gantry crane is designed with a bridge structure supported by legs that travel on rails or suitable floor-level tracks. Depending on the application, it can be equipped with an electric wire rope hoist, chain hoist, trolley, and appropriate control system to handle materials safely and efficiently.
Gantry cranes are suitable for indoor and outdoor operations and can be configured according to lifting capacity, span, lifting height, working environment, and material handling requirements. Balaji Crane Private Limited can be approached to discuss project-specific gantry crane requirements for industrial applications in Ahmedabad, Gujarat, and other locations as per project scope.
What Is a Gantry Crane?
A gantry crane is an overhead lifting system supported by two or more legs that move along a designated runway, rail, or suitable travel surface. The horizontal bridge connects the supporting legs and carries a hoisting mechanism that lifts and lowers loads.
Unlike many overhead travelling cranes, which are supported by building columns or elevated runway structures, a gantry crane carries its bridge on its own supporting legs. This arrangement can be useful in outdoor yards, fabrication areas, workshops, warehouses, and locations where a permanent overhead runway is unsuitable.
Gantry cranes can be designed in different configurations depending on the required lifting capacity, operating conditions, available space, and frequency of use.
Types of Gantry Cranes
1. Single Girder Gantry Crane
A single girder gantry crane uses one main bridge girder supported by legs. It is commonly considered for light- to medium-duty material handling applications, depending on the engineered design and rated capacity.
Applications: workshops, small manufacturing units, maintenance areas, and fabrication facilities.

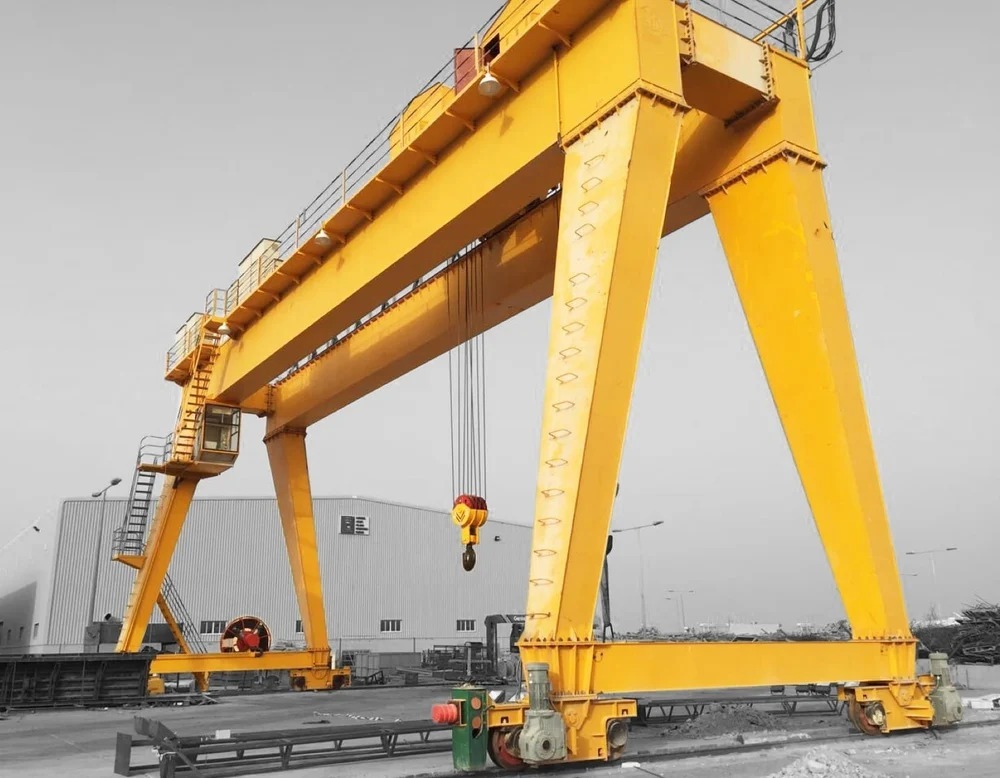

2. Double Girder Gantry Crane
A double girder gantry crane uses two main bridge girders to support the hoisting arrangement. It is commonly used for higher-capacity or more demanding lifting applications when required by the engineering design.
Applications: heavy engineering, steel fabrication, industrial yards, and large manufacturing facilities.
3. Mobile or Rubber-Tyred Gantry Crane
This configuration uses wheels or tyres for movement rather than a fixed rail arrangement. Suitability depends on the load, ground conditions, wheel loading, travel path, and required mobility.
Applications: selected storage yards, precast handling areas, and outdoor material movement.
4. Semi-Gantry Crane
A semi-gantry crane has one side supported by an elevated runway and the other by legs travelling along a floor-level rail. It can be useful where a full gantry arrangement is not practical.
Applications: production bays, workshops, and facilities with mixed overhead and floor-level support.
Key Features of Gantry Cranes
- Heavy Load Handling: Designed for lifting loads within the crane's rated capacity.
- Independent Supporting Structure: The bridge is supported by legs, reducing dependence on a fully elevated building runway.
- Flexible Installation: Suitable for selected indoor and outdoor applications.
- Electric Hoisting Options: Can be configured with a suitable electric wire rope hoist or chain hoist.
- Horizontal Load Movement: Supports movement across the bridge and along the runway or travel path.
- Customized Span: The bridge span can be engineered to suit the working area.
- Operational Controls: Pendant, radio remote, or other suitable control arrangements may be specified.
- Safety Provisions: Appropriate brakes, travel limits, overload protection, and other safeguards can be incorporated according to the design and applicable standards.
- Application-Specific Design: Structural configuration and components depend on the duty classification, environment, and operating requirements.
Technical Specifications of Gantry Cranes
The following table lists common design parameters. Actual values should be finalized according to the project requirements and approved engineering design.
Technical Parameter Available Design Considerations
Crane Type Single Girder, Double Girder, Semi-Gantry, or Mobile Configuration
Safe Working Load (SWL) Selected according to the maximum intended load
Span Customized to suit the working area
Lifting Height Based on the required hook travel and site clearance
Hoisting Mechanism Electric Wire Rope Hoist or Chain Hoist, as suitable
Hoist Trolley Selected according to crane configuration
Long Travel Rail-mounted or suitable wheel-based travel system
Hoisting Speed Selected according to operating requirements
Travel Speed Based on the required duty and movement pattern
Control System Pendant, radio remote, or other suitable arrangement
Power Supply Finalized according to the selected motor and electrical design
Duty Classification Selected according to lifting frequency and operating intensity
Safety Equipment Suitable braking, limit, overload, and emergency protection systems
Installation Indoor or outdoor, subject to site conditions
Important: Load capacity, span, speed, motor ratings, and duty classification should not be selected from generic ranges alone. These parameters require engineering assessment and confirmation for the specific crane.
Working Principle of a Gantry Crane
A gantry crane performs lifting and material movement through coordinated mechanical and electrical operations.
1. Load Attachment: The load is connected to a suitable hook or approved lifting attachment.
2. Hoisting: The hoist raises or lowers the load under controlled operation.
3. Cross Travel: The trolley moves along the bridge to position the load horizontally.
4. Long Travel: The crane moves along its rails or designated travel path to transport the load to another position.
5. Load Placement: The operator lowers the load into the designated area and releases the lifting attachment after the load is safely supported.
Operators must follow the approved operating procedure and avoid exceeding the rated capacity or moving suspended loads over people.
Applications of Gantry Cranes
Gantry cranes are used across several industrial sectors.
- Steel Fabrication: Handling steel plates, beams, sections, and fabricated structures.
- Manufacturing Industries: Moving machinery components, assemblies, and finished products.
- Engineering Workshops: Supporting machine maintenance and heavy component handling.
- Construction Sites: Lifting construction materials and selected prefabricated components.
- Warehouses and Storage Yards: Loading, unloading, and positioning materials.
- Precast Concrete Facilities: Handling suitable precast components using approved lifting arrangements.
- Shipyards and Marine Facilities: Moving heavy components in appropriately designed crane systems.
- Power and Infrastructure Projects: Handling equipment and components during installation and maintenance.
- Foundries and Heavy Industries: Supporting material movement under suitable temperature and environmental conditions.
Benefits of Gantry Cranes for Industrial Operations
1. Efficient Material Movement
Gantry cranes help transport heavy loads across designated working areas, improving material flow and reducing reliance on manual handling.
2. Flexible Installation
Because the crane is supported by legs, it can be suitable for locations where installing an elevated building-supported runway is difficult or impractical.
3. Indoor and Outdoor Use
Depending on structural design, electrical protection, corrosion protection, and environmental conditions, gantry cranes can serve both indoor and outdoor applications.
4. Improved Space Utilization
The appropriate crane configuration can help businesses organize lifting and storage areas more effectively.
5. Configurable Lifting Arrangements
Hoists, trolleys, controls, and travel mechanisms can be selected to suit the load and operational requirements.
6. Support for Heavy-Duty Work
Properly engineered gantry cranes can support demanding material handling operations within their specified capacity and duty classification.
Why Choose Balaji Crane Private Limited?
Balaji Crane Private Limited can be approached for industrial crane and material handling requirements where gantry crane selection must match the application and site conditions.
- Assistance in identifying a suitable crane configuration.
- Project-specific consideration of load capacity, span, and lifting height.
- Selection of appropriate hoisting and travel arrangements.
- Consideration of control systems and required safety provisions.
- Solutions planned around the working environment and material handling process.
For a gantry crane enquiry, provide the maximum load weight, required span, lifting height, travel distance, operating frequency, and whether the installation will be indoors or outdoors.
Frequently Asked Questions (Q&A) About Gantry Cranes
Q1. What is a gantry crane used for?
A gantry crane is used to lift, lower, and move heavy materials across a designated work area. Common applications include steel fabrication, manufacturing, warehouses, construction, and industrial maintenance.
Q2. What is the difference between a gantry crane and an EOT crane?
A gantry crane generally has its bridge supported by legs that travel on rails or a suitable travel surface. An Electric Overhead Travelling (EOT) crane usually travels on elevated runway beams supported by a building structure or dedicated supporting columns.
Q3. What are the main types of gantry cranes?
Common types include single girder gantry cranes, double girder gantry cranes, semi-gantry cranes, and mobile or rubber-tyred gantry cranes. The appropriate type depends on load, span, mobility, and site requirements.
Q4. What is the lifting capacity of a gantry crane?
The lifting capacity depends on the crane's engineered design. It must be selected according to the maximum load, lifting accessories, operating conditions, and applicable safety requirements.
Q5. Can a gantry crane be used outdoors?
Yes. Gantry cranes can be designed for outdoor use with suitable structural protection, electrical enclosures, weather protection, corrosion resistance, and other features appropriate to the environment.
